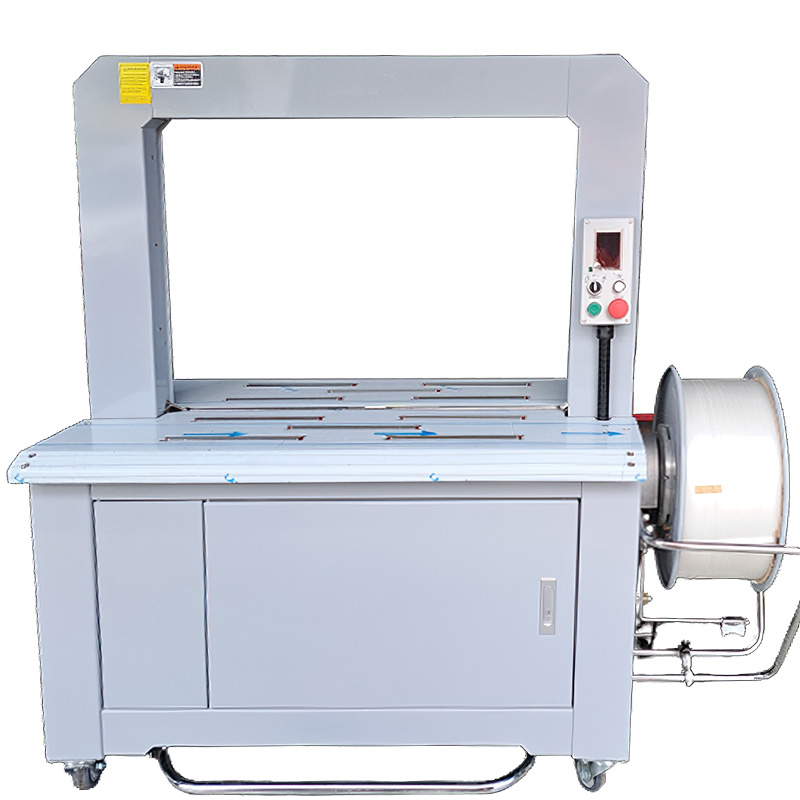

MXQ8 Automatic Hi-Speed Strapping Machine

SPECIFICATIONS

• Arch size 840W x 620Hmm (standard size)
• Single Phase 220V/230V/240V, 50-60HZ.
• Strap Working Speed – 40 strap/minute
• Strap Tension adjustable to 60 kg maximum.
• Strap Width 5, 9, 12 or 15mm specified.
• Roller table height 750mm.
• Machine Dimensions 1500L x 640W x 1500Hmm.
• Machine Weight 140 kg.

Features

• • • Min package dimension 70mm W x 20mm H
    • Max Package dimension 620mm W x 500mm H
    • Auto strap feed from reel dispenser.
    • Electronic display unit.
    • Integrated Tension switch and Encoder
    • Pedal pole cycle activator stepping facility
    • 12-month warranty.
